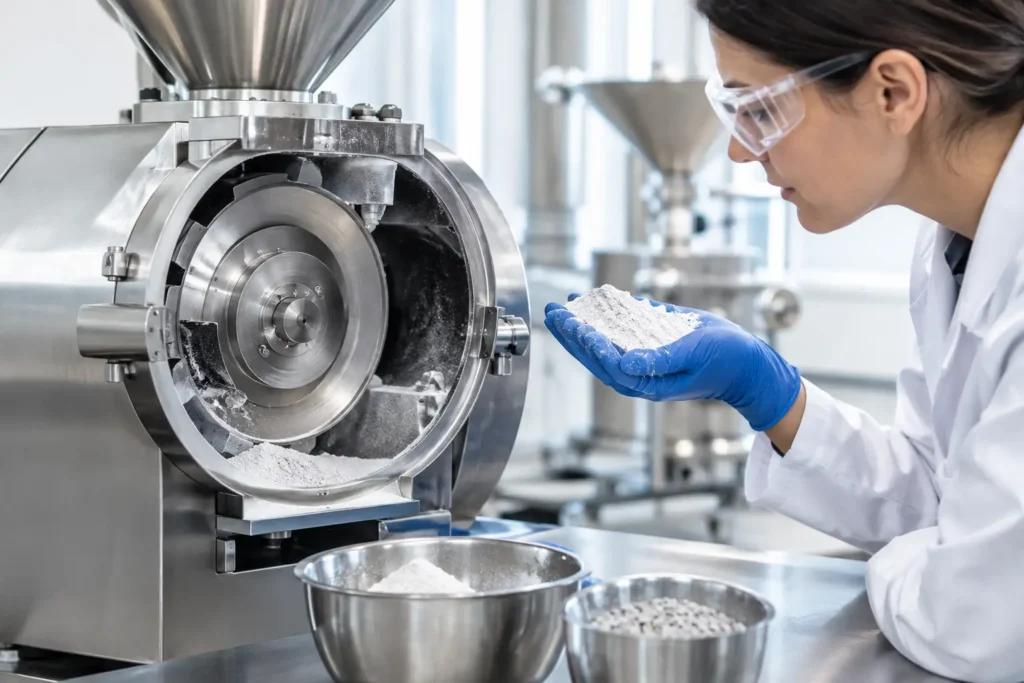

A milling process can produce an acceptable median particle size on a single trial and still fail the first extended production run. The difference is often not the mill itself. It is whether the team has taken the time to validate milling parameters against real material variation, operating duration, downstream requirements, and the limits of the complete process.

For manufacturers processing pharmaceuticals, food ingredients, battery materials, chemicals, minerals, or advanced powders, validation converts a promising trial result into an operating window that can be repeated. It establishes the conditions under which the system delivers the required particle size distribution, throughput, temperature control, product quality, and containment performance without relying on constant operator correction.

What Milling Parameter Validation Actually Proves

Validation is more than recording rotor speed, feed rate, and screen size after a successful run. It is a documented demonstration that defined inputs produce outputs within agreed specifications, including when normal production variables change.

The required evidence depends on the application. A pharmaceutical operation may prioritize particle size distribution, batch traceability, cleaning verification, and controlled product temperature. A battery-material producer may place greater weight on narrow top-size control, low metallic contamination, moisture management, and safe handling. In a food or nutraceutical application, heat exposure, flavor retention, sanitation, and foreign-material control may determine whether a milling condition is usable.

In every case, the objective is the same: define a practical process window, not a single ideal setting. A setting that produces excellent results only when feedstock moisture, operator technique, and ambient conditions are nearly perfect is not a validated production process.

Start With Product Requirements, Not Machine Settings

The strongest validation plans begin with measurable product and production requirements. Before selecting trial conditions, establish the critical quality attributes that milling must protect or achieve. These may include D10, D50, D90, maximum particle size, bulk density, flowability, surface area, moisture, color, assay, or contamination limits.

Then define the operational requirements. Required throughput, batch duration, yield, allowable loss, cleaning interval, energy use, dust control, and maintenance exposure all affect whether a process is economically viable. A mill may reach the target D90 at a low feed rate, for example, but that result has limited value if throughput cannot support the production schedule.

This approach also prevents a common mistake: treating a particle size target as the only success criterion. A finer grind can improve dispersion or reaction performance, but it can also increase heat generation, reduce yield through dust loss, worsen flowability, or create electrostatic handling issues. The right result is the one that meets the full process need.

Characterize the incoming material

Material behavior drives milling performance. Document the feed particle size, moisture content, bulk density, hardness, friability, fat or oil level, crystallinity, abrasiveness, temperature sensitivity, and tendency to agglomerate. Where suppliers or raw material sources vary, characterize the expected range rather than a single representative sample.

This baseline is especially important for natural products, reclaimed materials, mineral feedstocks, and formulations with multiple ingredients. A parameter set developed on dry, free-flowing feed may not transfer to a lot with higher moisture or a broader incoming particle size distribution. Validation should show how the process responds to those realistic changes.

Identify the Parameters That Control the Result

Not every machine setting deserves equal attention. Focus experimentation on parameters with a direct, meaningful effect on particle size, temperature, throughput, and product integrity.

For impact-based systems such as hammer, pin, turbo, and universal mills, the most influential variables commonly include rotor speed, screen or grate configuration, feed rate, air volume, and feed condition. In an air classifier mill, classifier speed and process air settings add another level of control over cut point and oversize rejection. Jet milling introduces grinding pressure, feed pressure, nozzle configuration, and classifier settings, while cryogenic grinding requires careful control of product temperature and refrigerant use.

The interactions matter as much as the individual settings. Raising rotor speed may reduce particle size, but if feed rate remains too high, material can recirculate, retain heat, or leave the chamber with a broader distribution. Increasing air volume can improve conveying and cooling, yet excessive airflow may reduce residence time or increase collection-system loading. Validation must examine these dependencies instead of changing one setting at a time without a structured plan.

Build a Practical Design of Experiments

A design of experiments, or DOE, provides a disciplined way to identify which variables truly drive performance. It is more efficient than running isolated trials because it reveals interactions and helps define the acceptable operating range.

Begin with a screening study across realistic low, nominal, and high conditions for the critical parameters. Use the results to identify the variables that require tighter control. Follow with confirmation runs at settings near the boundaries of the proposed operating window, not only at the preferred center point.

The test plan should include enough material to reach steady state. Short samples collected immediately after startup can be misleading because feed behavior, chamber temperature, and classifier performance may not yet be stable. Run duration should reflect the intended production mode, especially for products that can coat internals, build heat, or change flow characteristics over time.

During each run, collect process data alongside product samples. Feed rate, motor load, pressure, airflow, mill temperature, bearing temperature where relevant, classifier speed, collection pressure drop, and yield can explain results that particle size data alone cannot. Trends often reveal an approaching operating limit before the finished product moves out of specification.

Sample Where the Process Can Fail

A single final-product sample rarely tells the complete story. Sampling should represent startup, steady state, and end-of-run conditions. For continuous operations, collect time-based samples over the run to identify drift. For batch systems, consider whether the beginning and end of discharge are compositionally or particle-size distinct.

Use analytical methods that match the material and specification. Laser diffraction is widely used for fine powders, while sieve analysis may be appropriate for coarser products. Microscopy can reveal particle shape, unground fibers, agglomerates, or contamination that a size distribution alone may miss. When downstream performance is critical, include functional testing such as dissolution, compaction, dispersion, flow, or reactivity.

A validated method also requires a clear sampling and analysis procedure. Inconsistent sample splitting, poor dispersion in the analyzer, or a nonrepresentative grab sample can create false process variation and lead teams to adjust a mill unnecessarily.

Validate Milling Parameters Through Scale-Up

Pilot-scale success is valuable, but it is not proof of full-scale performance. Mill geometry, classifier size, airflow, feed system behavior, and thermal mass change with scale. A direct transfer of rotational speed or feed rate from a laboratory machine can produce very different energy input and residence time in production equipment.

Scale-up should preserve the process relationships that govern the result, such as tip speed, air-to-solid ratio, classifier performance, and specific energy where applicable. The correct approach depends on the milling technology and material. For this reason, application testing and engineering review are more reliable than applying a universal scale-up factor.

Use pilot data to establish a starting range, then execute confirmation runs on the production-scale system. Include expected feed variability and realistic run lengths. If the final process uses upstream feeding, pneumatic transfer, dust collection, or downstream blending and packaging, validate the integrated system. Restrictions in a rotary valve, poor feeder accuracy, or an undersized collection system can alter milling behavior even when the mill itself is properly selected.

Define Limits, Responses, and Corrective Actions

The final validation package should give operations teams a usable control strategy. It should identify target settings, allowable ranges, critical alarms, sampling frequency, and the response required when a parameter trends toward a limit.

For example, a process may specify a rotor-speed range, maximum feed rate, minimum airflow, acceptable motor-load band, and product-temperature limit. If motor load rises while particle size remains in range, the response might be to inspect feed consistency or chamber buildup before reducing speed. This protects both product quality and equipment reliability.

Change control is equally important. A new raw-material source, different screen design, altered classifier wheel, revised feed system, or new dust collector can affect the validated state. Not every change requires complete revalidation, but each should be assessed against the established process relationships and confirmed with appropriate testing.

Make Validation Useful on the Plant Floor

A validation report that cannot guide an operator during a difficult shift has limited operational value. Convert trial results into clear standard operating procedures, control limits, sampling instructions, and troubleshooting guidance. Train teams to recognize early signs of instability, including rising temperature, fluctuating amperage, reduced yield, classifier pressure changes, or shifts in product flow.

The best milling validation work creates confidence without narrowing operations into an unrealistic corner. It gives manufacturers a process window wide enough to run efficiently and tight enough to protect product quality. With disciplined testing, representative materials, and equipment engineered around the application, milling becomes a controlled production step rather than a recurring source of variability.
