Milling Hyflow Supercel & Celite 508: Understanding the Material and How DP Pulverizers Deliver Precision

Hyflow Supercel and Celite 508 might look like ordinary powders at first glance—white, light, fluffy—but behind that softness lies a remarkably complex material. Both belong to the family of diatomaceous earth (DE)–based filter aids, engineered for industries where fine filtration, high porosity, and controlled particle structure determine performance. And while these materials excel at filtration, they present very real challenges when it comes to milling.

This is where DP Pulverizers steps in, bringing equipment designed specifically to tame abrasive, low-density, fragile powders and produce reliable, repeatable micronized results.

What Hyflow Supercel & Celite 508 Actually Are

Both products—Hyflow Supercel (Imerys) and Celite 508 (Ametek/Imerys)—begin their lives in the same place: the fossilized skeletons of microscopic aquatic organisms called diatoms. Over millions of years, their silica-rich shells settle into thick deposits that can be mined, refined, calcined, and engineered into industrial filter aids.

These products are prized because:

• They have a high internal porosity
• They remain chemically inert
• They possess high surface area
• They can withstand high temperature and chemical environments
• They give extremely clean filtrate with predictable flow rates

Hyflow Supercel is a high-flow filter aid, while Celite 508 is often selected for general-purpose filtration or clarification. Both share the same core physicochemical traits—siliceous, brittle, porous—and both require tightly controlled particle sizes to function correctly in end-use applications.

How Hyflow Supercel & Celite 508 Are Made

The creation of these engineered filter aids involves several steps:

1. Mining & Beneficiation

Raw diatomaceous earth is extracted from open-pit mines and preprocessed to remove organic contaminants, clay, and unwanted minerals.

2. Calcination

DE is heated in rotary kilns, typically between 900–1100°C, to:

• Increase surface area
• Remove residual organic material
• Strengthen the particle structure
• Modify color and chemistry depending on application

Some DE is flux-calcined using sodium compounds, which dramatically increases permeability and brightness—this is what gives Hyflow its distinctive filtration performance.

3. Classification & Size Engineering

Post-calcination, the DE is classified into specific particle-size cuts. Celite 508 and Hyflow Supercel have unique PSD ranges that deliver:

Controlled permeability
Predictable cake density
Precise filtrate clarity
Consistent flow rate in industrial filters

However, the natural variability of mined DE often requires additional post-classification milling—which is where many manufacturers struggle.

The Trials and Tribulations of Milling DE

Trying to micronize DE, especially to around 75 microns, is a balancing act that defeats many conventional mills. Why? Because DE is a strange hybrid of characteristics:

1. It’s Extremely Abrasive

Diatom skeletons are made of amorphous silica. Even though they are light and fluffy, they behave like microscopic glass:

They destroy mild-steel internals
They cause rapid wear on poor-quality hammers, pins, and liners
They erode classifier blades faster than expected

If the mill isn’t engineered with abrasion-resistant alloys, uptime drops and maintenance costs spike.

2. It’s Extremely Low-Density

Because DE is mostly void space:

It doesn’t feed consistently
It fluidizes easily
It surges in screw feeders
It requires high airflow to suspend the particles

A poorly controlled feed leads to inconsistent particle size and inefficient grinding.

3. It’s Brittle — and Easy to Over-Grind

This is where people get into trouble. DE breaks very easily. Apply too much energy and you:

Collapse its internal pore structure
Create excess fines
Decrease filtration performance
Change how it behaves in downstream processes

The goal is reduction, not pulverization.

4. It Dusts like Nothing Else

DE is ultra-light and highly airborne:

It coats everything
It creates respiratory hazards
It creates environmental compliance issues
It’s extremely difficult to contain without a closed system

Milling DE without a proper dust collector is asking for trouble.

How DP Pulverizers Solve the Challenges of Milling Hyflow Supercel & Celite 508

DP Pulverizers has spent decades engineering milling systems that behave exactly the way DE needs a mill to behave: gently, precisely, abrasion-resistant, airtight, and with exceptional process control.

Here’s how our systems answer every challenge.

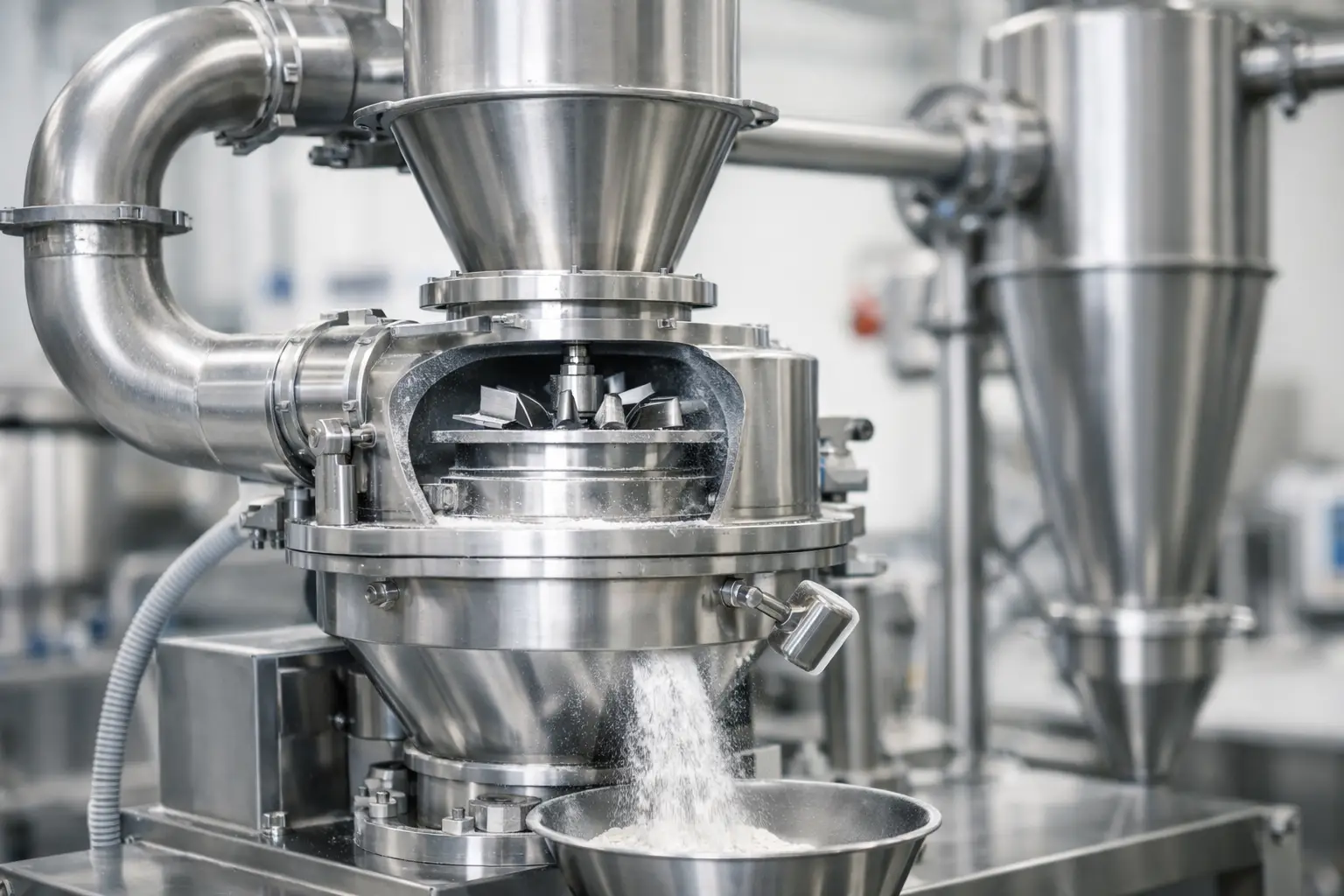

1. Air Classifier Mill Technology: The Perfect Match

Our ACM (Air Classifier Mill) is the preferred choice for milling DE to 75 µm because of its internal classification system.

The ACM-30 in your quote features:

30 HP impact rotor
7.5 HP high-speed classifier wheel
Tungsten Carbide-tipped hammers
SS410 wear liners and rotor plates
1590 CFM airflow for lightweight materials

The classifier acts as a gatekeeper:

Coarse particles are returned to the grinding zone
Fines pass through without over-grinding
Heat buildup remains minimal
Product porosity is preserved

This ensures Hyflow and Celite maintain their functional structure.

2. Built-In Wear Protection for Abrasive Powders

All contact parts use SS304 or SS410, with:

Tungsten Carbide-tipped bars
Abrasion-resistant liners
Heavy-duty classifier blades

This dramatically increases machine life when running abrasive silica-rich powders.

3. Controlled Feeding for Low-Density Materials

The included feeder + hopper solves the biggest DE problem:

Bridging
Flooding
Rat-holing
Surge flow

Metered feeding gives a steady mass flow, which ensures consistent PSD.

4. Closed-Loop Dust-Free Operation

Between the:

High-efficiency cyclone
Rotary airlock valve
Pulse jet dust collector
High-pressure fan

the system becomes fully enclosed. No airborne DE. No mess. No OSHA headaches. No material loss.

DE is dusty—but DP systems aren’t.

5. Repeatable Micron-Level Output

DP’s ACM systems can comfortably deliver:

75 µm d97
High yield
Narrow PSD distribution
Stable batch-to-batch performance

Because DE is brittle, the trick is precision, not brute force. That’s where an integrated classifier is essential.

Conclusion: Milling DE Requires More Than Just a Mill — It Requires Expertise

Hyflow Supercel and Celite 508 are engineered materials that demand respect. Their performance in filtration, chemical processing, food, pharmaceuticals, and beverage clarification depends entirely on the preservation of their internal structure and the consistency of their particle size.

A standard mill can break DE down.
A DP Air Classifier Mill can do it correctly, consistently, and economically.

With the DP ACM-30 system, manufacturers get a milling line that:

Handles abrasive silica
Maintains structural porosity
Avoids over-grinding
Eliminates dust issues
Achieves precise 75 µm results
Operates with long-term reliability

Hyflow and Celite may be delicate, abrasive, and unpredictable—but with the right mill, they become some of the easiest materials you’ll ever process.
